Place of Origin:
China
Brand Name:
GTECH/OEM
Certification:
ISO, CE, UN38.3, MSDS
Model Number:
PPS-2000W

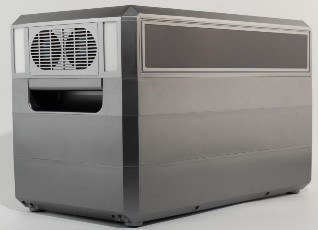

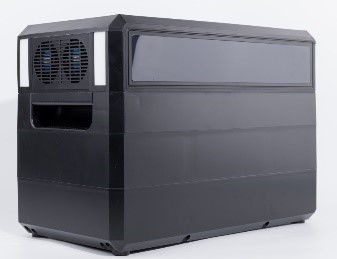

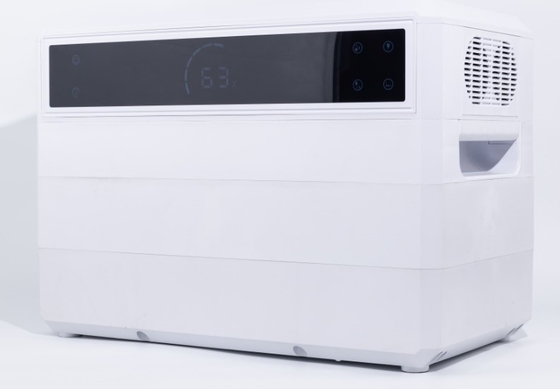

2000W G-Tech PPS Series Portable Power Supply
The 2000W G-Tech PPS Series portable power supply is a high-capacity energy solution designed for intensive power needs. With its robust 2000-watt output and advanced lithium iron phosphate (LiFePO4) battery technology, this power station provides reliable energy for both indoor and outdoor applications, from home backup and mobile workstations to large-scale outdoor activities.
Key Features
Parameter table
category | project | Specifications |
Rated capacity | 45ah | |
Rated energy | 2300wh | |
INPUT | DC input |
1.DC5521 10V~45V/10A supports photovoltaic MPPT tracking. DC5521 and XT60 are shared and cannot be inserted at the same time. 2. XT60 10V~45VMAX400W supports photovoltaic MPPT tracking DC5521 and XT60 are shared and cannot be inserted at the same time 3. Pin-shaped AC input interface 180V~250V rated power 1000W |
AC OUT 110V/220V |
AC output voltage | AC 220V±5% |
AC output power | 2000W | |
Overload protection | 2200~2400W | |
AC output waveform | Pure sine wave | |
AC instantaneous output power | ≥22000W | |
frequency |
110V-60HZ 220V-50HZ |
|
USB output port | USB1 output | QC3.0 MAX 20V/3A 60W |
USB2 output | QC3.0 MAX 12V/1.5A 18W | |
Type-c output port | Type-c 1 |
QC3.0MAX 12V-1.5A total power 18W PD MAX 12V2.5A 30W |
Type-c 2 | PD/QC3.0 MAX 20V-5A total power 100W | |
Wireless charging output | 15W | |
DC output terminal | DC1/DC2 /DC Car Charger | 12V/10A MAX120W |
Charging time | 2.5-3H | Charge from 10% to 100% (automatically cut off) |
Charging voltage | 58.4V±0.1V | The voltage at which the battery is automatically charged |
Protection function | Short circuit, overload, over temperature, over voltage, over current, under voltage, etc. | |
LED Display | Display battery status | Battery percentage and battery column jump |
DC, AC, PD working status | Display Power | |
Battery cycle life | More than 2000 times | |
Over temperature protection | AC over temperature protection | ≥85℃ |
illumination | LED Light | 4W high brightness, with 2-level dimming and SOS flash light |
Material | PC+V0 flame retardant | |
color | White panel (conventional colors: black, white, silver gray, customizable colors) | |
size | 462*3252*333mm | |
Product Weight | About 24KG | |
Power on status | <1W |
