Place of Origin:
China
Brand Name:
Gtech
Certification:
CE/UN38.3/MSDS
Model Number:
LR 48-100
Gtech LR Series Lithium Batteries with the characteristics of long lifespan, high safety, easy maintenance and eco-friendly.
Description:

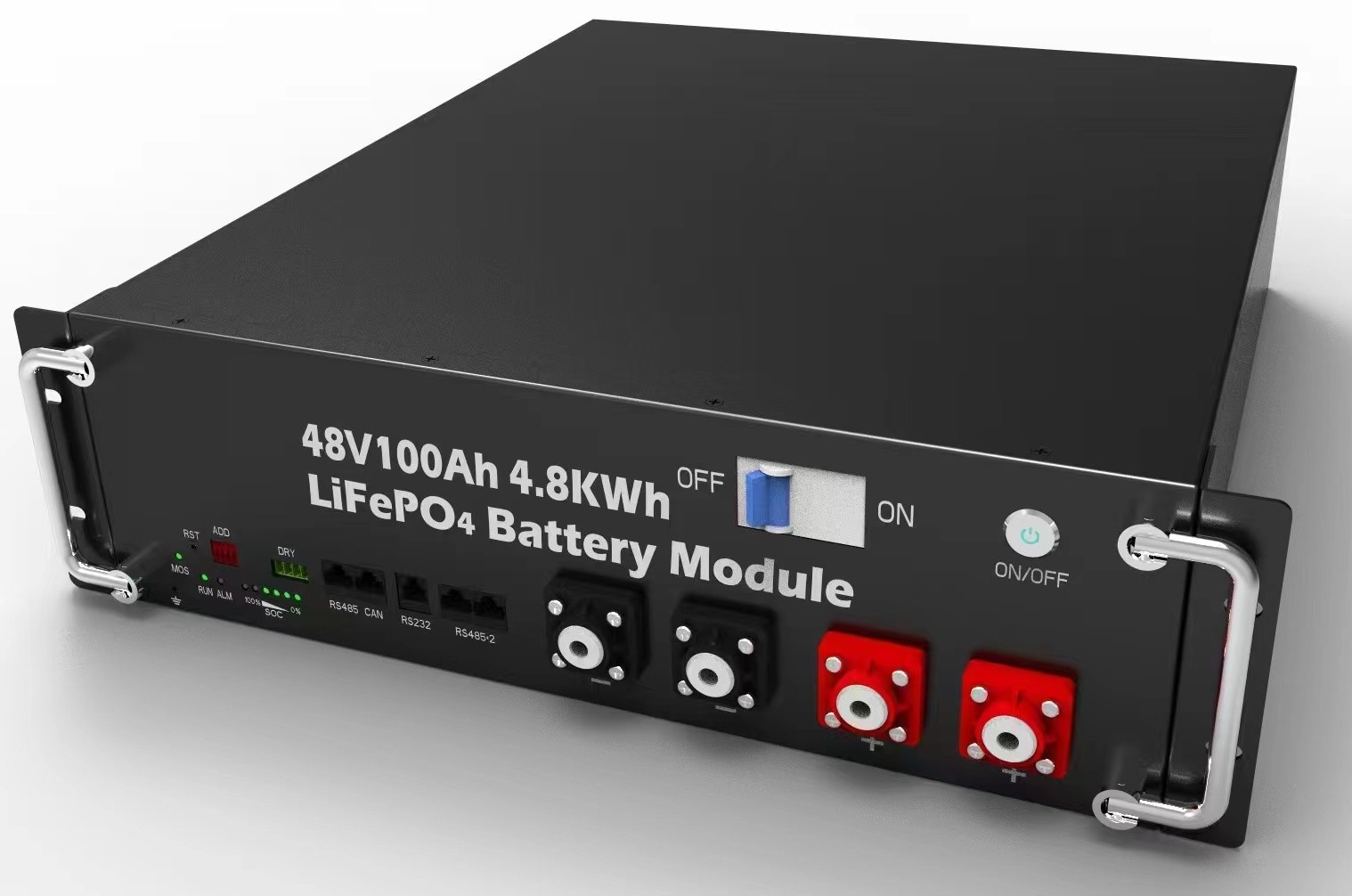

The LR series 48V LiFePO4 lithium battery is a high-quality energy storage solution that is designed to meet the demands of modern technology. With its long lifespan, high safety standards, and eco-friendly characteristics, this battery is an excellent choice for various applications such as UPS, communication base stations, and inverters.
One of the most prominent features of the LR series 48V LiFePO4 lithium battery is its long lifespan. This battery can last for up to 5000 cycles under applied conditions, which is significantly higher than traditional lead-acid batteries, making it an excellent investment for long-term applications. Additionally, the LiFePO4 technology used in this battery ensures that it retains its charge for extended periods without the need for frequent maintenance. It has a low risk of thermal runaway, which reduces the possibility of explosions or fires. Moreover, this battery is free of heavy metals such as lead and cadmium, making it an eco-friendly and sustainable choice.
This battery is ideal for use in applications that require high power and reliability, such as communication base stations, where power outages can cause significant disruptions. Furthermore, the LR series 48V LiFePO4 lithium battery is compatible with most chargers and inverters, making it a versatile and convenient energy storage solution for various industrial and residential applications.
In conclusion, the LR series 48V LiFePO4 lithium battery is a reliable, long-lasting, and safe energy storage solution that meets the demands of modern technology. Its eco-friendly characteristics make it an excellent choice for individuals and businesses looking to reduce their carbon footprints.
Features:
Grade A cell from the top lithium battery manufacturers
Smart BMS with automatic cell equalization and all protections
Humanized visual appearance from APP function
CAN/RS485/Dry contact multi-communication interface
Support Max 32 PCS cascade for large capacity application
Max discharge current 150A for tough off-grid solution
Compatible with multi-brands known charger and inverter
Self-owned factory with no-compromise quality and natural cost advantages
Flexible OEM/ODM policy
Specification:
| Model | LR48-100 | ||||
| Battery Type | LiFePO4 | ||||
| Battery Model | 48V 100AH | ||||
| Nominal Capacity(25 ℃,0.2C)WH | 4800Wh | ||||
| Adjustable Working Volltage(Vdc) | 40-54.75V | ||||
| Max Charge Voltage(Vdc) | 54.75V | ||||
| Charging Current(A) | 20A | ||||
| Discharging Current(A) | 50A | ||||
| Max Continuous Discharge Current(A) | 100A | ||||
| Max Pulse Dischange Curent(A) | 150A | ||||
| Max Continuous Charge Curent(A) | 100A | ||||
| Cycle Life(25C 0.2C 80%DOD) | >5000 Cycles | ||||
| Terminal | M8 | ||||
| Storage Duration | 6 months at 25 ℃ | ||||
| Safety Standard | UN38.3/MSDS/CE | ||||
| Communication Function | RS485/CAN(Standard) | ||||
| Communication with Mainstream Inverter | Growatt/Victron/Goodwe/MUST/SMA/Deye/SRNE etc. | ||||
| Protection | Overcharge protection/Over discharge protection/Over current protection/ Short circuit protection/ Over temperature protection | ||||
| W*H*D(Product Size)mm | L500*W482*H132.5 | ||||
| Net Weight(Kg) | 43KG | ||||
Why Choose Us:
ISO9001, ISO 14001, ISO45001 accredited factory
Professional sales, R&D team and qualified workers
Fast response, timely delivery, reliable products and Factory direct price
Strict quality control from IQC, assembly, process and electric performance tests
Our batteries certified with UN 38.3, UL, CE, IEC, CTL, ROHS, Golden Sun authentication
Product Photo:
Application:
Battery for Delivery:
Our Factory:
About G-TECH Group:
G-Tech power Group was established in 2012. After more than 10 years of development, it has become a high-quality professional manufacturer that also can provide complete power supply system solution. We specialize in developing, manufacturing and operating the most reliable and safe UPS, Inverter and battery products. Our products have been exported to more than 100 countries around the world, winning a high reputation in domestic and overseas markets. With the continuous development of new energy technology, we invested a new factory named Guangdong Lanke New Energy Co., Ltd., which adopted the completely automatic product line, focusing on the R&D, manufacturing and sales of lithium iron phosphate (LiFePO4) pack, providing safer, smarter and simpler batteries energy storage system, and adhering to the management philosophy of safety first, product quality and environmental protection as the center. Our factory (Lanke New Energy) is located in Dongguan City, Guangdong Province, China, known as the "World Factory" with convenient transportation and developed supporting industries, covering an area of 10,000 square meters. There are more than 500 employees, including more than 50 intermediate and senior technical Engineers. We have advanced automated module production lines for manufacturing batteries and assembling all-in-one ESS for residential and commercial energy storage solutions. In order to provide more efficient and cost-effective lithium energy storage products to meet customers' expanding power needs and high-quality requirements,
Our factory has passed ISO 14001, ISO 9001, ISO45001 and other certifications, and has obtained multiple product invention practical patents. With fully automatic equipment and excellent quality control, we guarantee customer satisfaction in all stages of production. We warmly welcome friends from all over the world to discuss and negotiate with us and establish mutually beneficial and win-win friendly cooperative relations!
