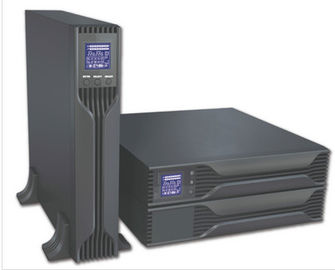

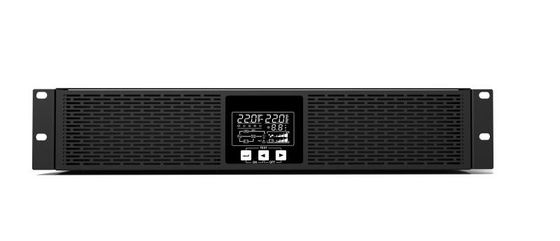

Rack Mount Line-interactive UPS RTL series
Applicable to household PC, office equipment in enterprise and institution; small communication switchboard and server; LAN device; commercial POS machine; small workstation and its peripheral equipment; banking terminal,ATM system and so on.
1kva/ 1.5kva/ 2kva/ 3kva/ 5kva
customized
145-275Vac
200-240Vac
Applicable to household PC, office equipment in enterprise and institution; small communication switchboard and server; LAN device; commercial POS machine; small workstation and its peripheral equipment; banking terminal,ATM system and so on.
Suitable for the PC,router,POS machine communication processor,industrial products which for the enterprises,government,scientific research,traffic,national defense,information and education industries.
Features:
MODEL#
RTL-1K
RTL-1KL
RTL-1.5K
RTL-1.5KL
RTL-2K
RTL-2KL
RTL-3K
RTL-3KL
RTL-5K
RTL-5KL
Capacity
1000VA/700W
1500VA/1050W
2000VA/1400W
3000VA/2100W
5000VA/3500W
DISPLAY
G-Sensor automation LCD display
AC MODE
Input voltage
145-275Vac
Input frequency
45-65Hz
Output voltage
200-240Vac
INVERTER MODE
Output voltage
220V±5%
Output frequency
50±1% Hz / 60±1%Hz(Auto sensing)
Power factor
>0.6
Output wave form
Pure Sine Wave
Transfer time
Typical 2-6ms, 10ms max
Overload capability
110% shut down within 60secs. 120% shut down within 5secs.
Overcurrent protection
System shuts down automatically within 20ms
BATTERY
Battery type
Sealed maintenance-free lead-acid batteries
DC voltage
DC 24V
DC 48V
DC 48V
QTY. & capacity of battery
12V/7AHx2
----
12V/9AHx2
----
12V/7AHx4
----
12V/9AHx4
----
12V/9AHx4
----
External DC voltage
----
24VDC
----
24VDC
----
48VDC
----
48VDC
----
48VDC
Charging current
Long back up time models: 5A or 10A(Adjustable)
Charging period
Standard type models:6-8 hours recover to 90% capacity;Long backup time models:Depends on the batteries connected.
PHYSICAL
Net weight(kg)
16.2
13.5
19.2
16
26.6
18.6
28.5
20.5
39
30.8
Dimension(mm)
441*445*88
441*445*132
ENVIRONMENT
Environment
Temperature 0℃-40℃, Humidity 20%-90%
Noise level
≤40dB(1m)
Altitude
≤1000 m (Altitude exceeds 1000m, full power cannot reach)
MANAGEMENT
USB & RS232
Optional
BATTERY PACK
12V/7AH×8
12V/9AH×8
12V/9AH×12
Dimension(mm)
441 * 445 * 88
441 * 445 * 132
Net weight(kg)
24.5
27.4
42.6
Performance characters:
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
