Place of Origin:
China
Brand Name:
OEM
Certification:
CE, ISO，SGS
Model Number:
DC

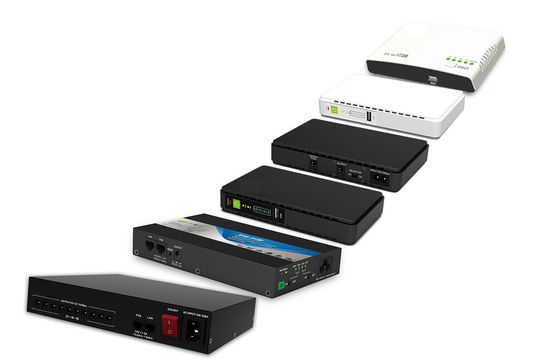

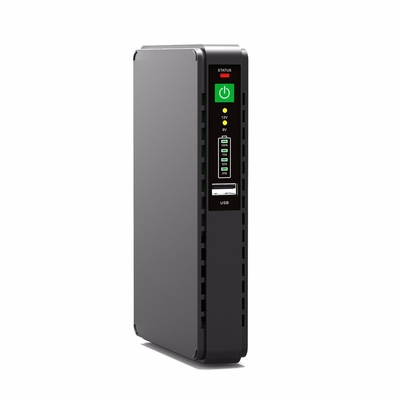

Our Economic Mini Uninterruptible Power Equipment (ECO Mini UPS) is designed to provide reliable power protection against overload, short circuit, over temperature and reverse polarity. It has a working temperature range of 0℃ to +40℃ and the charging period is 2-3Hours. The product is equipped with a Lithium battery and offers uninterrupted power to critical devices. The ECO Mini UPS is a compact and cost-effective power solution for residential and commercial applications. It is an ideal choice for those who require reliable and long-lasting power protection.
Specification:
Model | ECO Plus | |||||||
| 212 | 415 | 415P | 430P | 430M | 430S | 860 | 1660 | |
| Input Voltage | 100-240Vac | |||||||
| Output | ||||||||
DC output Volatge (optional ) | USB 1.5A 9/12V 1A | 5V+USB 2A 9V/12V 1A 12V 1A | 5V USB 2A 9V/12V 1A 15V/24V 0.5A (POE) | 5V USB 2A 9V/12V 2A 15V/24V 1A (POE) | 5V USB 2A 9V/12V 2A 12Vx4 2A | 5V USB 2A 9V/ 12Vx4 2A Solar input | 5V USBx2 2A 9V/ 12V 2A 15V/24V(POE) 1A 12Vx4 5A Solar input 2A | |
| Voltage Select | Choosing through the slide switch | |||||||
| Output Power(max) | 12W | 15W | 30W | 60W | ||||
Transfer Time | 0 ms | |||||||
| Battery | ||||||||
| Type | Lithium battery | |||||||
Qty & Capacity | 6700mAh | 8800mAh | 2200mAhX8 | 2200mAhX16 | ||||
Charging Period | 1-2 hours | 2-3 hours | 4-5 hours | |||||
| Physical | ||||||||
Dimension (mm) | 141.5*84.5*35 | 180*106*29 | 258*152*46 | |||||
Net Weight(kg) | 0.3 | 0.4 | 0.94 | 1.28 | ||||
| Environment | ||||||||
| Performance | Temperature 0℃~40℃ ; Humanity20%~90% | |||||||
| Noise level | Less than 40dB | |||||||
Product specifications are subject to change without notice.
