Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE, ISO，SGS
Model Number:
PT series

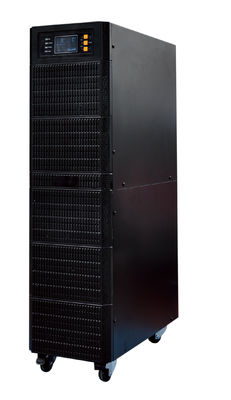

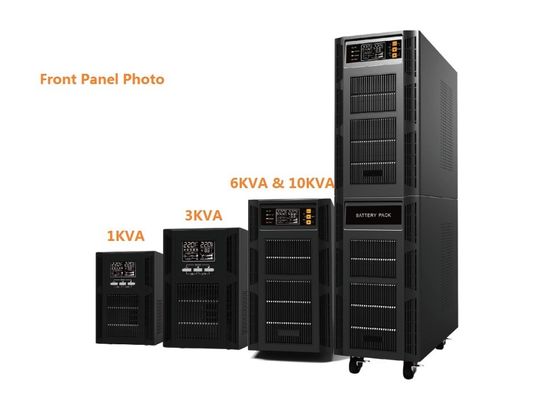

The High Frequency Online UPS is a powerful emergency power solution designed to provide reliable and efficient backup power for mission-critical applications. With a power capacity of up to 10kVA, this high frequency online backup power system is designed to provide consistent, reliable power with a transfer time of 0ms and an efficiency of up to 95.5%. It also features an output power factor of 1.0 and a LCD display for easy monitoring. Highly reliable and cost-effective, this high frequency online emergency power system is ideal for protecting critical equipment from power outages and ensuring business continuity.
G-Tech's PT Series High Frequency Online UPS is designed to provide secure power for any application. With an output power factor of 1.0, a transfer time of 0ms, an LCD display, and a high efficiency of ≥95.5%, this reliable and advanced battery backup system is the perfect choice for any business. The PT Series also offers superior protection from overload, short circuit, over temperature, and battery low voltage.
G-Tech's PT Series High Frequency Online UPS guarantees secure power in any situation, making it an ideal solution for mission-critical applications. With advanced technologies and sophisticated design, the PT Series provides the most reliable and efficient high frequency online secure power for any environment.
| Model # | PT-1KS | PT-1KL | PT-2KS | PT-2KL | PT-3KS | PT-3KL | |||
| Capacity | 1KVA / 1KW | 2KVA / 2KW | 3KVA /3KW | ||||||
| Display | LCD | ||||||||
| INPUT | |||||||||
| Voltage range | Full load | 85~140 VAC or 160~280 VAC | |||||||
| half load | 55~150 VAC or 110~300 VAC | ||||||||
| Frequency Range | 40Hz~70Hz | ||||||||
| Phase | Single phase with ground | ||||||||
| Power factor | ≥ 0.99 @ 220-230 VAC (input voltage) | ||||||||
| OUTPUT | |||||||||
| Output voltage range | 100/110/115/120/127VAC or 200/208/220/230/240VAC | ||||||||
| AC Voltage Regulation | ± 1% (Batt. Mode) | ||||||||
| Frequency Range | Line Mode: (Synchronized Range) , Batt. Mode: 50/60Hz±0.1% | ||||||||
| Overload | Line Mode: 1min@105%~125%Load 30s@125~150% Load 0.5ms@>150%Load | ||||||||
| Current Crest Ratio | 3:1 | ||||||||
| Harmonic Distortion | ≤2% THD (Linear load); ≤5% THD (non-linear load) | ||||||||
| Transfer time | AC Mode to Batt. Mode: Zero | ||||||||
| Inverter to Bypass: 4ms (Typical) | |||||||||
| Wave form (Batt. Mode) | Pure Sine Wave | ||||||||
| EFFICIENCY | |||||||||
| AC Mode | Peak efficiency 93% | Peak efficiency 94% | Peak efficiency 94% | ||||||
| Full load efficiency 90% | Full load efficiency 91% | Full load efficiency 91% | |||||||
| BATTERY | |||||||||
| Battery type ( standard model) | 12 / 7AH | ||||||||
| Capacity & quantity of battery | 2pcs*12V7Ah | ------- | 6(4)pcs*12V7Ah | ------- | 6(8)*12V7Ah | ------- | |||
| External battery norminal DC voltage | ------- | 36VDC | ------- | 72VDC | ------- | 96VDC | |||
| Recharge Time | 4 hours recover to 90% capacity ( Typical) , depends on users' needs | ||||||||
| Charging Current | 1.0 (default) 1~12A(settable) External battery pack | 1~12A(settable) | 1.0 (default) 1~12A(settable) External battery pack | 1~12A(settable) | 1.0 (default) 1~12A(settable) External battery pack | 1~12A(se | |||
We offer a comprehensive technical support and service for our High Frequency Online UPS product. Our service begins from the time of purchase and beyond.
Our experienced team of engineers and technical support staff have in-depth knowledge of the product and can provide expert advice on installation, maintenance and troubleshooting.
We offer a range of options for customer support, including:
We are also committed to providing timely updates and upgrades to the product to ensure it remains up-to-date with the latest technology.
If you have any questions or need assistance with your High Frequency Online UPS, please contact us and our team will be happy to help.
A: G-Tech PT series High Frequency Online UPS is a high-quality power protection device designed and manufactured by G-Tech in China. It offers reliable and efficient power protection for your sensitive electronic equipment, ensuring that your equipment continues to operate normally even in case of power failures or power surges.
A: G-Tech PT series High Frequency Online UPS offers features such as high frequency double conversion online design, wide input voltage range, high efficiency, energy saving, LCD display, super long time backup, RS232/USB communication port, and generator compatible.
A: G-Tech PT series High Frequency Online UPS provides full protection against power outages, brownouts, line noise, surges, over-voltage, and over-current.
A: G-Tech PT series High Frequency Online UPS comes with a 3-year warranty on parts and labor.
A: G-Tech PT series High Frequency Online UPS comes with an input power cord, a user manual, a mounting kit, and a USB cable.
