Place of Origin:
China
Brand Name:
OEM
Certification:
UL, CE, UN38.3, MSDS
Model Number:
LFP48-100

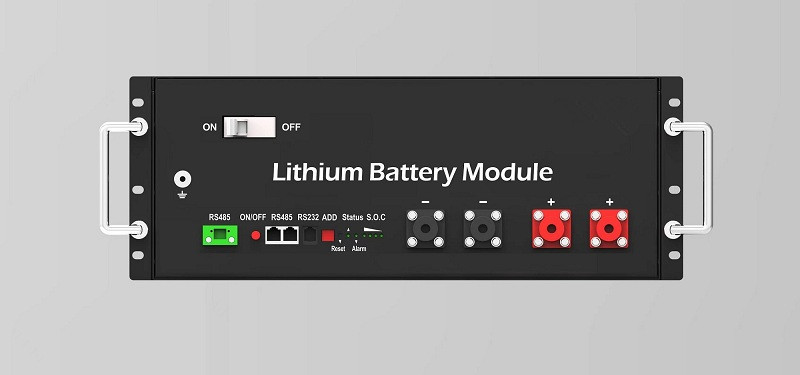

LiFePO4 Battery Pack is a Lithium-Ion-Phosphate-Battery (LFP-Battery) with Lithium-Iron-Phosphate chemistry. It offers a high capacity of 100Ah, making it ideal for a wide range of applications. With a Max Charge Current of 100A, it can be rapidly charged and discharged. The Cycle Life of the battery is 5000 Times, making it highly reliable and durable. The battery also comes with a 3 Year Warranty for added peace of mind. LiFePO4 Battery Pack is a great choice for anyone looking for a reliable and long lasting Lithium-Iron-Phosphate-Battery with a high Capacity, Max Charge Current, Cycle Life, and Warranty.
| MODEL # | LFP 24-100 | LFP 48-50 | LFP 48-100 |
| SPECIFICATION | |||
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Model | 25.6V100AH | 51.2V50AH | 51.2V100AH |
| Nominal Capacity(25℃,0.2C)WH | 2560Wh | 2560Wh | 5120Wh |
| Adjustable working voltage(Vdc) | 22.4～29.2V | 44.8～58.4V | 44.8～58.4V |
| Folat Charge Voltage(Vdc) | 28V | 56V | 56V |
| Max.Continuous discharge current(A) | 100 | 100 | 100 |
| Max.pulse discharge current(A) | 150A 1Sec. | 100A 1Sec. | 150A 1Sec. |
| Max.Continuous charge current(A) | 100 | 50 | 100 |
| Cycle life(+25℃ 0.2C 80% DOD) | ＞5000 Cycles | ＞5000 Cycles | ＞5000 Cycles |
| Cell Equalizer Current(A | 0.1～5A Max.(optional) | 0.1～5A Max.(optional) | 0.1～5A Max.(optional) |
| Terminal | M6 | ||
| Storage duration | 6 months at 25℃ | ||
| Safety standard | IEC62619,UN38.3,MSDS,CE | ||
| Communication function | RS484/UART/SNMP/Wifi/Bluetooth | ||
| PROTECTION | |||
| Protection | Overcharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection | ||
| AMBIENT | |||
| Noise(dB) | ＜40dB(1 meter) | ||
| Working temperature | -20℃～+60℃ | ||
| Humidity | 0～95%(no condensation) | ||
| Altitude(m) | <3000 | ||

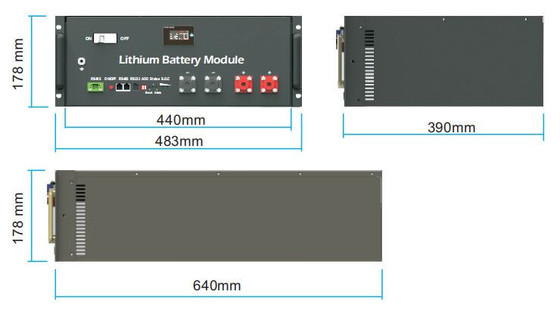

| DIMENSION | |||
| L*W*H( size)mm | L405*W483*H178mm | L655*W483*H178mm | |
| L*W*H(package size)mm | L440*W518*H213mm | L690*W518*H213mm | |
| Net Weight(Kg): | Approx.35kg | Approx.72kg | |
| Gross Weight(Kg): | Approx.39kg | Approx.78kg |
|
The LFP-Battery-Pack from OEM is a reliable LiFePO4 Battery Pack with a model number of LFP48-100. It has a capacity of 100Ah and a maximum charge current of 100A, making it a great choice for a wide range of applications. It also has an impressive cycle life of 5000 times and comes with a 3-year warranty. In addition, it has undergone strict certification tests, including UL, CE, UN38.3, and MSDS, so customers can be sure of its quality and safety. Furthermore, the minimum order quantity is 1, and the price is negotiable. With all these features, the LFP-Battery-Pack from OEM is the perfect choice for any business.
We are committed to providing our customers with quality LiFePO4 battery packs and technical support. Our team of experienced engineers will work with you to ensure your product is working properly.
Our technical support team is available to answer any questions or concerns you may have regarding your LiFePO4 battery pack. We can provide troubleshooting tips and assistance with installation, maintenance, and more.
Our customer service team is committed to providing the best service possible. We will work with you to find the best solution for your needs and ensure that your LiFePO4 battery pack is working properly. If you have any questions or concerns, please do not hesitate to contact us.
All LiFePO4 Battery Packs are packaged in cardboard boxes and are given extra protection to ensure they are not damaged during the shipping process. Each box is marked with a unique serial number to enable proper tracking of the battery pack during shipping.
The boxes are then carefully placed in a larger box and secured with bubble wrap and other packing materials. Each box is labeled with the address of the intended recipient.
The larger box is then sent to the shipping company, who will deliver it to the customer's address. The shipping company will provide tracking information so the customer can track the status of their shipment.
