Economic Mini DC UPS Uninterruptible Power Module 5Ah-100Ah 100V-240V

Product Description:

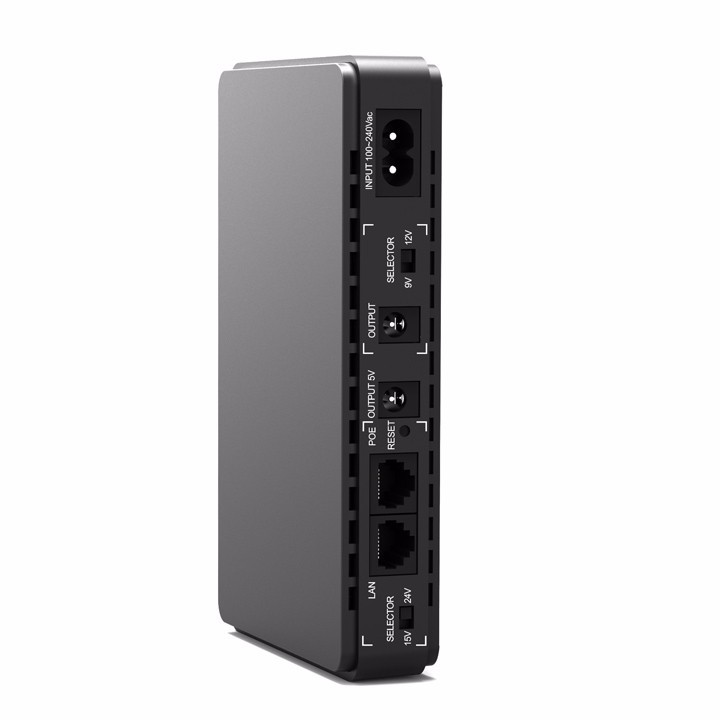

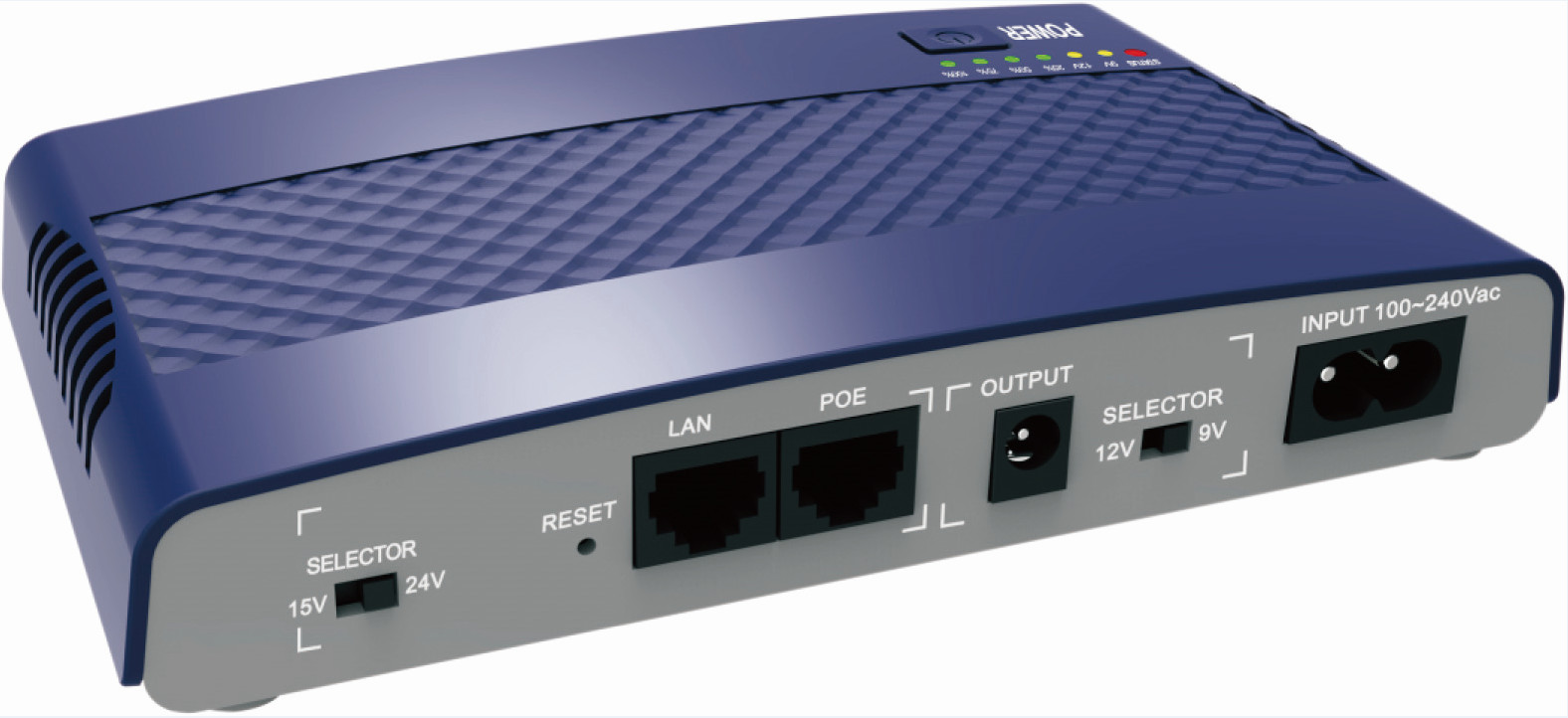

ECO Mini Uninterruptible Power Unit is an innovative product that ensures the reliable and continuous power supply to various electronic appliances. It is designed for delivering a wide range of charging voltage from 100V to 240V with different battery capacities from 5Ah to 100Ah. The charging period of this Mini DC UPS is within 2-3 hours and the working temperature range is from 0℃ to +40℃. This ECO Mini Uninterruptible Power Supply provides a stable and safe power source for a wide range of products, making it ideal for all your power needs.

Features:

• Product Name: Economic Mini Uninterruptible Power Backup (Mini DC UPS)
• Working Temperature: 0℃~+40℃
• Battery Capacity: 5Ah-100Ah
• Charging period: 2~3Hours
• Protection: Overload/Short Circuit/Over Temperature/Reverse Polarity
• Equipment: Economic Mini Uninterruptible Power Equipment
• System: ECO Mini Uninterruptible Power System

Specification:

Model (ECO)	212	312	412	1248P	412P	418	418PRO	430PRO
INPUT
Input Voltage	100-240Vac
Output
DC Output Voltage (optional)	5V/7.5V/9V/12V (POE)			12V&48V (POE)	9V/12V & 15V/24V (POE)	5V+USB 2A 9V/12V 1A 15V/24V 0.5A ( POE )		5V+USB 2A 9V 2A 12V 2A 15V/24V 1A ( POE )
Voltage Select	Choosing through the slide switch
Output Power	12W			12W&24W (total 36W)	12W&48W (total 60W)	18W		30W
Transfer Time	0 ms
Battery
Battery Type	Lithium battery			Lead Acid	Lithium battery		LiFePo4
Capacity	4400 mah	6600mah	8800mah	12v/2.3Ah *1PC	8800mah		7200mah
Cycle life						300 cycles	1000cycles
Charge
Charging Period	Typical: 2-3 Hours
Physical
Unit Dimension (mm)	165*105*26			268*144*51	108*183*29	159*108*28
Net Weight (kg)	0.28	0.36		1.6	0.62	0.4
Enviroment
Performance	Temperature degree Celsius
Noise level	Less than 40dB

Applications:

G-Tech ECO Mini DC UPS

G-Tech ECO Mini DC UPS is the perfect solution for customers looking for an economic mini uninterruptible power backup. With its wide range of battery capacity from 5Ah to 100Ah, the product provides reliable and stable power supply. It has a fast charging period of 2 to 3 hours and a wide voltage range from 100V to 240V. Working temperature of G-Tech ECO Mini DC UPS is 0℃~+40℃. It is the perfect choice for customers who need an economic mini uninterruptible power backup system.

Customization:

Brand Name: G-Tech
Model Number: ECO
Place of Origin: China
Working Temperature: 0℃~+40℃
Product Name: Mini DC UPS
Charging Voltage: 100V-240V
Protection: Overload/Short Circuit/Over Temperature/Reverse Polarity
Charging period: 2~3Hours

G-Tech ECO Mini DC UPS is an economic mini uninterruptible power device that provides reliable power back-up for various applications. It is designed with a working temperature between 0℃~+40℃ and comes with a charging voltage of 100V-240V. It is also equipped with protection features such as overload, short circuit, over temperature and reverse polarity, ensuring reliable power backup. Furthermore, it has a fast and efficient charging period of 2~3 hours.

Packing and Shipping:

Mini DC UPS Packaging and Shipping:

• The product will be packaged in a cardboard box with foam padding to protect it.
• The box will be sealed with tape and labeled with “Mini DC UPS”.
• The package will be shipped via a reputable international courier.
• The delivery time will depend on the location.

FAQ:

A: Mini DC UPS is a product by G-Tech, model number ECO, with Place of Origin in China. It is a uninterruptible power supply (UPS) which provides power to a device in the event of an unexpected power outage. Q: What kind of devices does Mini DC UPS support?
A: Mini DC UPS can support a variety of devices, including computers, routers, modems, and security cameras. Q: How does Mini DC UPS work?
A: Mini DC UPS works by providing a continuous supply of power to the device in the event of a power outage. It uses a built-in battery to provide a backup source of power so that the device can continue to operate. Q: What are the benefits of using Mini DC UPS?
A: Mini DC UPS offers a variety of benefits, including improved device reliability, increased power efficiency, and improved safety. Q: What is the warranty period for Mini DC UPS?
A: The warranty period for Mini DC UPS is one year from the date of purchase.
