Place of Origin:
China
Brand Name:
G-Tech
Certification:
ISO, CE, ROHS
Model Number:
Tower UPS

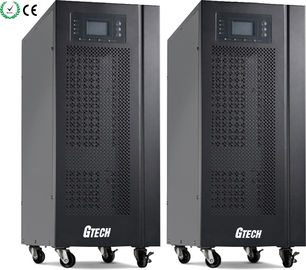

Pure Sine Wave 10KVA Three Phase Online UPS Tower Type Power
Production Introduction
This UPS series uses CPU integrated control technology, enabling it to respond promptly and accurately to power outages, high or low voltage, surges, transients or spikes. Its protection ports provide protection for special external devices such as printers. It has automatic startup and voltage regulation functions, as well as a wide range of input voltage, making it suitable for all kinds of electric power environments. Moreover, its design is elegant and user-friendly, with the option of LED or LCD display.
|
MODEL |
PT33-20KS |
PT33-30KS |
PT33-40KS |
PT33-60KS |
PT33-80KS |
||||
|
Rated power |
20KVA/20KW |
30KVA/30KW |
40KVA/36KW |
60KVA/60KW |
80KVA/80KW |
||||
|
INPUT |
|||||||||
|
Input Mode |
Three phases + N + G |
||||||||
|
Rated Voltage |
380/400/415Vac |
||||||||
|
Voltage Range |
208~478Vac |
||||||||
|
Frequency |
45-55Hz at 50Hz/54-66Hz at 60Hz (Adaptive) |
||||||||
|
Range Power Factor |
≥ 0.99 |
||||||||
|
Harmonic Current Distortion (THDi) |
≤ 3%(100％ nonlinear load ) |
||||||||
|
Bypass Frequency Range |
Upper limit of bypass protection voltage: 220V:﹢ 25%(﹢ 10%,﹢ 15%,﹢ 20% optional)； 230V:﹢ 20%(﹢ 10%,﹢ 15% optional)； 240V:﹢ 15%(﹢ 10% optional) |
||||||||
|
Minimum bypass protection voltage: -45%( -20%,-30% optional) |
|||||||||
|
Bypass frequency protection range: ±10% |
|||||||||
|
OUTPUT |
|||||||||
|
Input Mode |
Three phases + G or Single phase + N |
||||||||
|
Rated Voltage |
380/400/415Vac or 220/230/240Vac |
||||||||
|
Range Power Factor |
0.8 |
||||||||
|
Regulation Accuracy |
±1% |
||||||||
|
Output Frequency |
AC mode |
±1%,±2%,±4%,±5%,±10% settable (50/60±0.2)Hz |
|||||||
|
Battery mode |
(50/60±0.2%) Hz |
||||||||
|
Load Peak Ratio |
3:1 |
||||||||
|
Output Voltage Distortion |
≤ 2% with linear load |
||||||||
|
≤ 5% nonlinear load |
|||||||||
|
BATTERY |
|||||||||
|
Battery Voltage |
DC±192V/±204/±216V/±228/±240V (±16/17/18/19/20 pcs ) optional |
||||||||
|
Charge Current |
10A max |
||||||||
|
OTHERS |
|||||||||
|
Transfer time |
AC mode to bypass mode: 0ms(following); AC mode to battery mode: 0ms |
||||||||
|
Efficiency |
Normal mode≥ 94.5% |
||||||||
|
Communication Interface |
USB,RS485, dry contact , parallel connection(optional), SNMP card(optional), relay card(optional) |
||||||||
|
Standard |
YD/T1095-2008 |
||||||||
|
PROTECTION |
|||||||||
|
Overload |
Normal mode: load ≤ 110%,60min; ≤ 125%, 10 mins; ≤ 150%, 1min; ≥ 150% shutdown immediately |
||||||||
|
Over heat Protection |
Normal mode: switch to bypass mode; Battery mode: turn off the output immediately |
||||||||
|
Emergency Power Off(EPO) |
Shutdown the output immediately |
||||||||
|
ENVIRONMENT |
|||||||||
|
Operating Temperature |
0℃～ 40℃ |
||||||||
|
Storage Temperature |
-25℃～ 55℃ |
||||||||
|
Relative Humidity |
0 ~ 95% no condensation |
||||||||
|
Altitude |
< 1500m,In case of exceeding 1500m, it shall be reduced according to GB/T 3859.2 |
||||||||
|
PHYSCIAL |
|||||||||
|
Dimension W * D * H(mm) |
724X250X534 |
724X301X961 |
|||||||
|
Net Weight(kg) |
45 |
46 |
48 |
80.5 |
82.5 |
||||
Company Introduction
G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.
The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.
OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.
After 17 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.
We warmly welcome friends from all over the world to explore and negotiate with us, To build a mutual benefit and win-win friendly cooperate relationship!
