Place of Origin:
China
Brand Name:
G-TECH
Certification:
CE/RoHS/ISO
Model Number:
XL Series

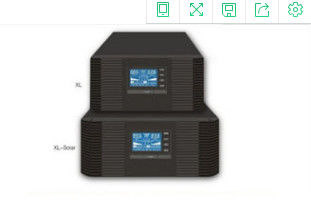

XL Series XL1000~XL5000, Pure Sine Wave Home Inverters, 4-Step AVR, AC/Solar Power Charging
Specification:
| Model | XL-1000 | XL-1200 | XL-2000 | XL-3000 | XL-4000 | XL-5000 | |||
| Capacity | 1000VA/800W | 1200VA/1000W | 2000VA/1600W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W | |||
| Power factor 0.8 | |||||||||
| Input | |||||||||
|
Voltage range (INV,mode) |
100-290Vac ± 5 Vac | ||||||||
|
Voltage range (UPS,mode) |
145-270Vac ± 5 Vac | ||||||||
| Frequency | 45-65Hz | ||||||||
| Output | |||||||||
|
Voltage range (INV,mode) |
150-255Vac ± 5Vac | ||||||||
|
Voltage range (UPS,mode) |
203-238Vac ± 5Vac | ||||||||
| Frequency | 50±0.1Hz (Batt. mode) | ||||||||
| Wave form | Pure sine wave (Batt. mode) | ||||||||
| Transfer time | < 10ms | ||||||||
| Battery (12V/24V) | |||||||||
|
Charging Current(AC) |
10A/20A Max. | ||||||||
|
Type of battery (Optional) |
GEL/sealed lead acid/open lead acid | ||||||||
| Net weight (kg) | 9.8 | 12.2 | Updating | ||||||
| Net weight(kg) | 10.1 | 12.5 | Updating | ||||||
|
Dimension (mm) |
290*255*120 | ||||||||
|
Operating Enviroment |
Temperature 0 ºC~40ºC Humanity 20%~90% |
||||||||
| Noise level | ≤40dB(1m) | ||||||||
| RJ45/11&USB | Optional | ||||||||
Product specifications are subject to change without notice.
